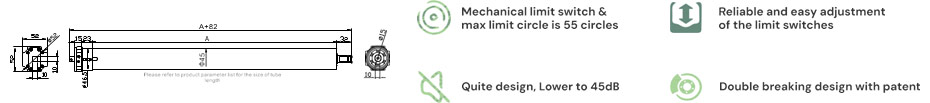

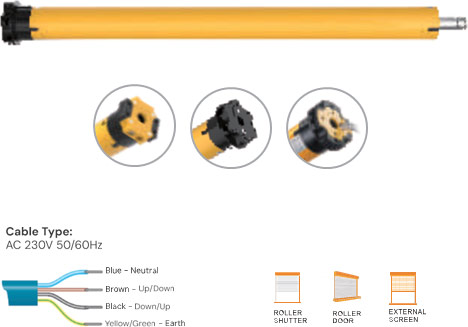

Standard motor (AM45)
Can be controlled with (switch 3 way or receiver & remote)
Can be controlled by home automation system.
| Technical Data based on Motor Torque (N.m) | ||||
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
10 | 17 | 440 | 135 | 0.6 |
20 | 17 | 482 | 170 | 0.7 |
30 | 17 | 502 | 200 | 0.9 |
40 | 17 | 502 | 200 | 0.9 |
50 | 17 | 520 | 250 | 1.1 |
65 | 17 | 520 | 330 | 1.5 |
Technical data | |||||
| Power supply | Operating temperature | Cable type | Insulation class | Protection rating index | Thermal time |
| 230 V / 50 Hz | -40°C to +85°C | VVF 1.5m | Class I | IP 44 | 4 minutes |

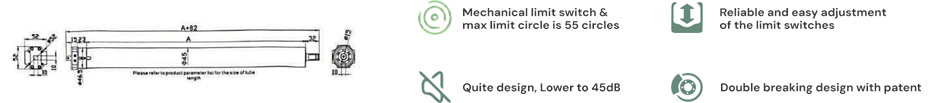

AM60
| Technical Data based on Motor Torque (N.m) | ||||
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
60 | 12 | 720 | 368 | 1.6 |
80 | 12 | 720 | 400 | 1.7 |
100 | 12 | 720 | 420 | 1.85 |
120 | 9 | 720 | 396 | 1.75 |
140 | 9 | 720 | 420 | 1.85 |
Technical data | |||||
| Power supply | Operating temperature | Cable type | Insulation class | Protection rating index | Thermal time |
| 230 V / 50 Hz | -40°C to +85°C | VVF 1.5m | Class I | IP 44 | 4 minutes |
