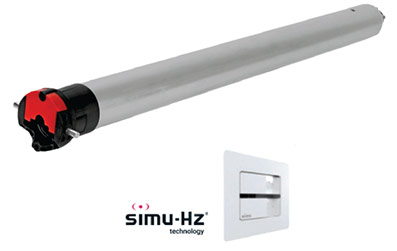

Technical data | |
| Power supply | 230 V / 50 Hz |
| Operating temperature | Normal use: -10°C to +40°C |
| Cable type | Only unpluggable VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
5 | 12 | 521 | 90 | 0.4 |
10 | 12 | 521 | 100 | 0.45 |
15 | 12 | 521 | 120 | 0.5 |
20 | 12 | 541 | 140 | 0.65 |
30 | 12 | 621 | 160 | 0.75 |
40 | 12 | 621 | 240 | 1.1 |
50 | 12 | 621 | 240 | 1.1 |
Technical data | |
| Power supply | 230 V / 50 Hz (207 V - 253 V) |
| Operating temperature | Normal use: -10°C to +40°C |
| Cable type | VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
60 | 12 | 740 | 240 | 1.05 |
80 | 12 | 740 | 290 | 1.25 |
100 | 12 | 740 | 350 | 1.5 |
120 | 12 | 740 | 400 | 1.8 |
Controlled by (Remote - Tahoma - Connexoon)
Technical data | |
| Power supply | 230 V / 50 Hz |
| Operating temperature | Normal use: -10°C to +40°C |
| Cable type | VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
10 | 17 | 619 | 120 | 0.5 |
20 | 17 | 693 | 160 | 0.75 |
35 | 17 | 693 | 240 | 1.1 |
50 | 17 | 693 | 240 | 1.1 |
Technical data | |
| Power supply | 230 V / 50 Hz (207 V - 253 V) |
| Operating temperature | Normal use: -10°C to +40°C |
| Cable type | VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
Torque (N.m) | Nominal Speed (rpm) | Length (mm) | Power (W) | Current (A) |
80 | 12 | 729 | 290 | 1.25 |
100 | 12 | 729 | 350 | 1.5 |
120 | 12 | 729 | 400 | 1.8 |
