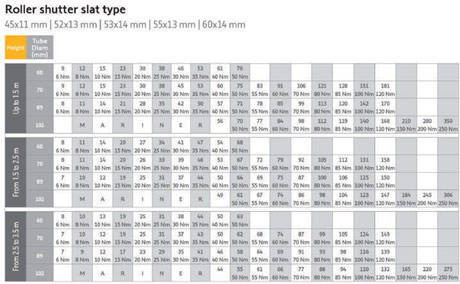

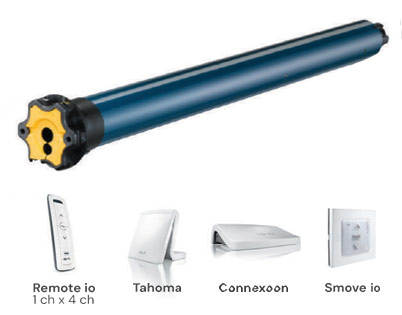

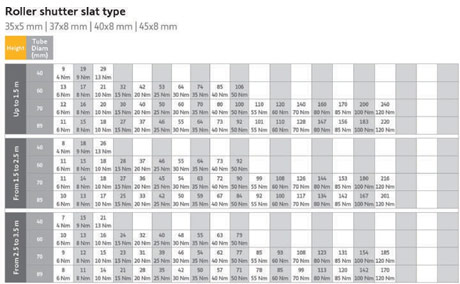

Somfy Motor selection
Range 1: 230V / 50Hz
إختيار المحرك سومفي
مجموعة ۱: ۲۳۰ ف / ٥٠ هرتز
Technical data | |
| Power supply | 230 V / 50 Hz (207 V – 253 V) |
| Operating temperature | Normal use: -10°C to +40°C Exceptional use (20% of the lifetime not simultaneously): -25°C to +70°C |
| Cable type | Only unpluggable VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Homologations | CE + VDE + NF |
Settings | |
| Manual | Compatible with soft links |
| Limit Switch Unit | Rapid adjustment, 46 turns |
Torque (N.m) | Nominal Speed (rpm) | Overall Length (mm) | Rated Power (W) | Rated Current (A) | Weight (kg) |
6 | 12 | 440 | 90 | 0.35 | 1.7 |
8 | 12 | 440 | 90 | 0.35 | 1.7 |
10 | 12 | 440 | 90 | 0.45 | 1.7 |
15 | 12 | 440 | 120 | 0.45 | 1.9 |
20 | 12 | 440 | 140 | 0.65 | 2.1 |
30 | 12 | 440 | 160 | 0.75 | 2.2 |
40 | 12 | 440 | 240 | 1.1 | 2.5 |
Technical data | |
| Power supply | 230 V / 50 Hz (207 V – 244 V) |
| Operating temperature | Normal use: -10°C to +40°C Exceptional use (20% of the lifetime not simultaneously): -25°C to +70°C |
| Cable type | Pluggable RFF or VVF |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Homologations | CE + VDE + NF |
Settings | |
| Manual | Compatible with soft links |
| Limit Switch Unit | Rapid adjustment, 35 turns |
| Torque (N.m) | Nominal Speed (rpm) | Overall length (mm) | Rated power (W) | Rated current (A) | Weight (kg) |
| 60 | 12 | 620 | 240 | 1.05 | 4.7 |
| 80 | 12 | 620 | 290 | 1.25 | 4.9 |
| 100 | 12 | 665 | 350 | 1.5 | 5.4 |
| 120 | 12 | 665 | 400 | 1.8 | 5.6 |
