Technical data | |
| Power supply | 230 V / 50 Hz |
| Operating temperature | Normal use: -10°C to+40°C |

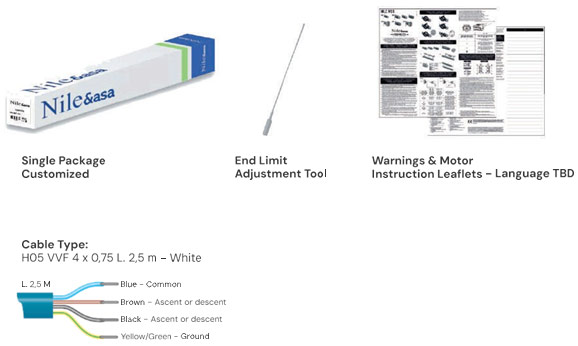

| Cable type | VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
| Torque (N.m) | Nominal Speed (rpm) | length (mm) | power (W) | current (A) |
6 | 12 | 613 | 90 | 0.4 |
10 | 12 | 613 | 50 | 0.4 |
20 | 12 | 663 | 140 | 0.55 |
30 | 12 | 663 | 160 | 0.75 |
40 | 12 | 663 | 240 | 1.1 |
50 | 12 | 663 | 240 | 1.1 |
Technical data | |
| Power supply | 230 V / 50 Hz |
| Operating temperature | Normal use: -10°C to+40°C |
| Cable type | VVF 2.5m |
| Insulation class | Class I |
| Protection rating index | IP 44 |
| Thermal time | 4 minutes |
| Technical Data based on Motor Torque (N.m) | ||||
|---|---|---|---|---|
| Torque (N.m) | Nominal Speed (rpm) | length (mm) | power (W) | current (A) |
| 80 | 12 | 695 | 290 | 1.4 |
| 120 | 12 | 695 | 400 | 1.8 |
